2007 Haas VF-3 with 4th Axis
ConditionUsed
1 available

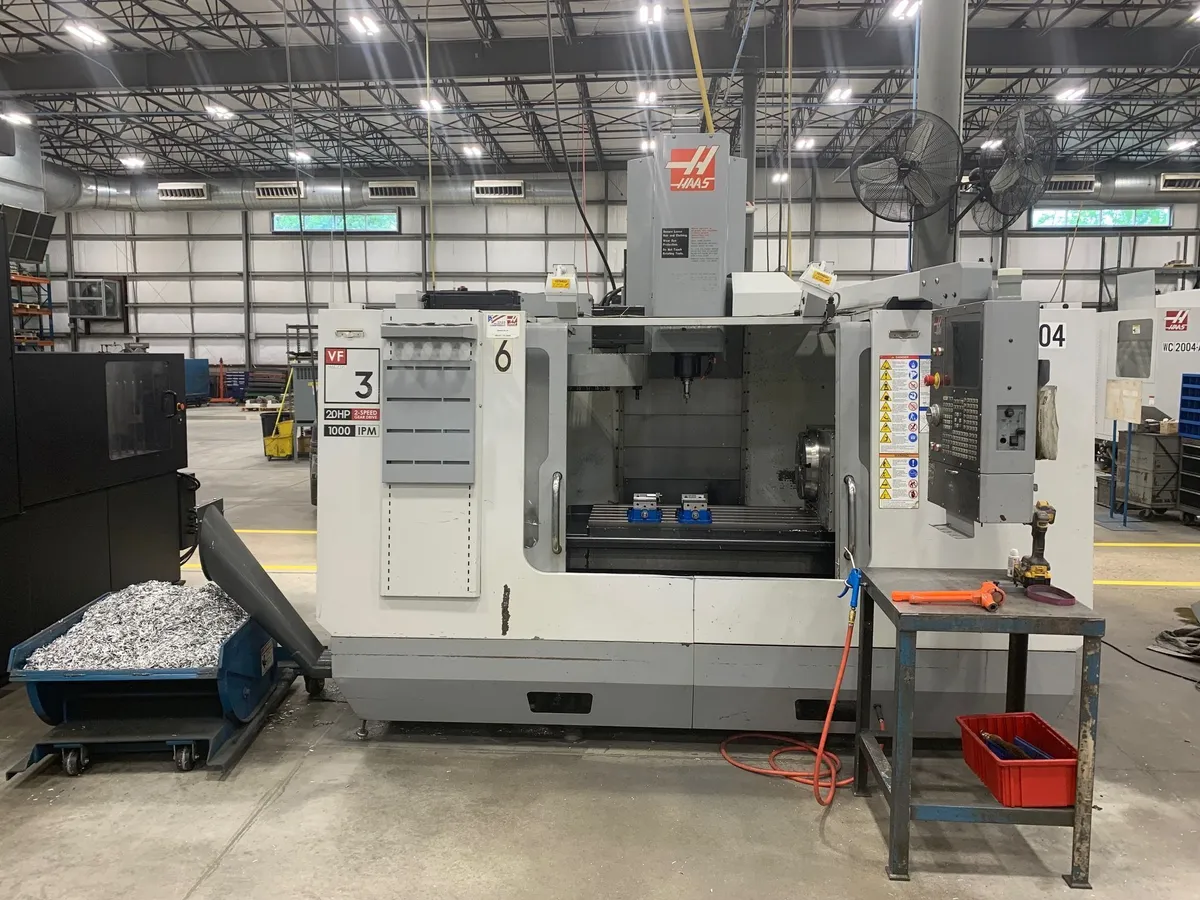

2007 HAAS VF-3B CNC vertical machining center with HRT-210 4th axis. Features 40" X, 20" Y, 25" Z travel, 20 hp, 7,500 RPM, 24-tool ATC, CAT 40 taper and 18" x 48" table. Kurt vises and tooling not included.
Standard 1MB of memory, has new Tool Changer Carousel, Arm, Proxy Switches, Sensors and the Front Y-Axis way cover, holds accuracy, backlash and repeatability within .0001”.
The HRT-210 4th Axis is included, but the Kurt vices and no other tooling is included.
2007 HAAS VF-3B CNC vertical machining center with HRT-210 4th axis. Features 40" X, 20" Y, 25" Z travel, 20 hp, 7,500 RPM, 24-tool ATC, CAT 40 taper and 18" x 48" table. Kurt vises and tooling not included.
Imperial
| X | 40" |
| Y | 20" |
| Z | 25" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| # ATC | 24 |
| Taper | 40 |
| Table-W | 18" |
| Table-L | 48" |
Standard 1MB of memory, has new Tool Changer Carousel, Arm, Proxy Switches, Sensors and the Front Y-Axis way cover, holds accuracy, backlash and repeatability within .0001”.
The HRT-210 4th Axis is included, but the Kurt vices and no other tooling is included.
