| X | 25.6" | 650.24 mm |
| Y | 16.7" | 424.18 mm |
| Z | 17.1" | 434.34 mm |
| Power | 17 hp | 12.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | BT30 Dual Contact | BT30 Dual Contact |

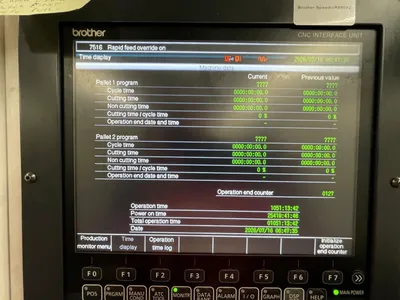

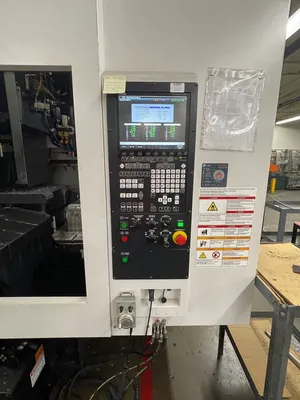

Brother CNC-C00 Control with Built-In PLC
10,000 RPM High Torque BBT CTSI Spindle
17.0/11.7 HP Main Spindle Low Inertia Motor - IPM Motor Type
BT-30 Taper, 40 Tool High-Speed ATC
Travel: 25.6¨ x 15.7¨ x 17.1¨
Table: 31.5¨ x 15.7¨
Rapid Traverse: X,Y,Z - 1,969 IPM
1,000 PSI High Pressure Pump
Tool Washing System
Automatic Grease Lubrication System
Chip Shower System
250L Coolant Tank
Complete Covers with Ceiling Cover and Safety Door Interlock System
R650X2 10KHT BBT 40T CTS
1 Manual Pulse Generator
1 Work Light Kit (2-Lights)
1 Autodoor Servo Type (R650X2)

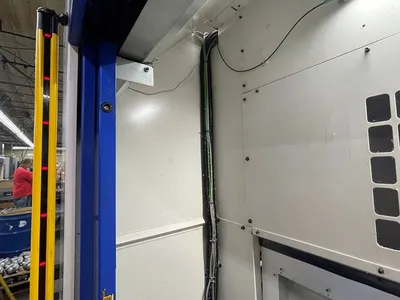

1 Area Sensor Kit for Speedio

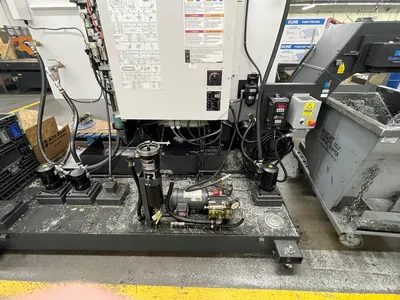

1 Nachi 3,000 PSI Hydraulic Power Unit (Two Valve - 2
HP Variable Piston)
1 Spindle Override
1 Extended I/O
1 Shower Gun for R650X2 40T
1 1,000 PSI High Pressure Pump Pkg.
1 Amano MZ-15 Mist Collector with Top Mount
Installation Kit
1 Blum TC-52 Spindle Probe Kit for Brother (needs probe tool)
1 Blum Z-Nano w/ 60mm Riser

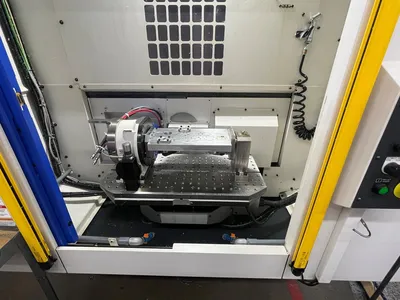

1 4th-Axis Rotary Index Table with Interface: Brother
T-200A R (2units/set) (High Speed)
1 Hydraulics and automation interface package
(includes hydraulic hosees, hydraulic switches, and
ladder setup
1 Second Blum Z-Nano Tool w/60mm riser
1 Mayfran CleanSweep Conveyor with 500L expansion
2020 / Pur New in 2022
Only 1065 Hrs
This equipment has been sold. Similar equipment available now is shown below.
