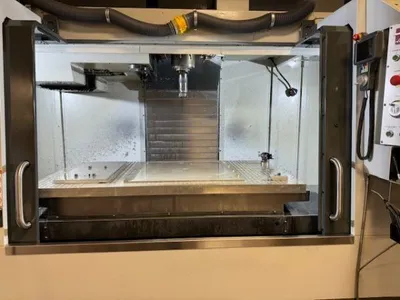

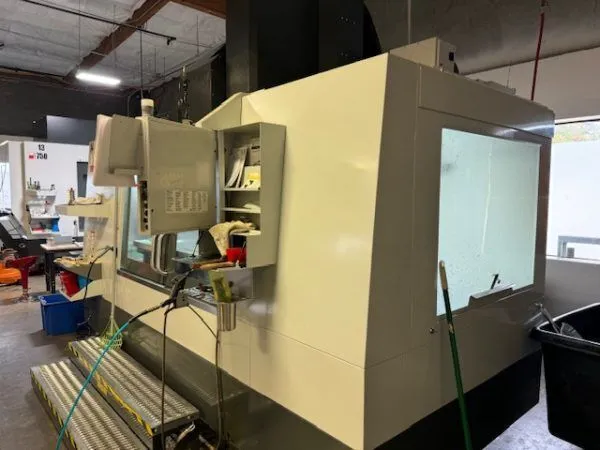

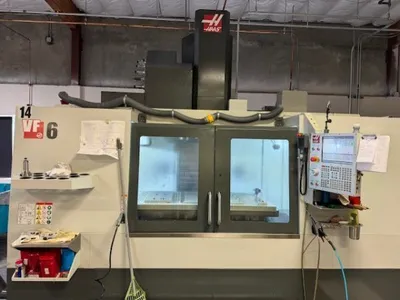

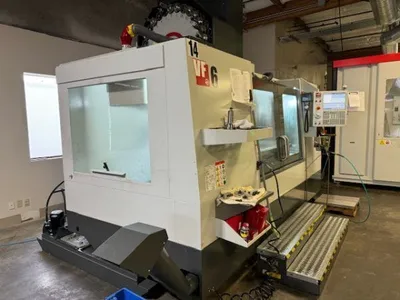

Haas VF-6/50 CNC Vertical Machining Center (2022)

Travels
X-Axis Travel: 64”
Y-Axis Travel: 32”
Z-Axis Travel: 30”
Spindle Nose to Table: Approximately 5”–35”

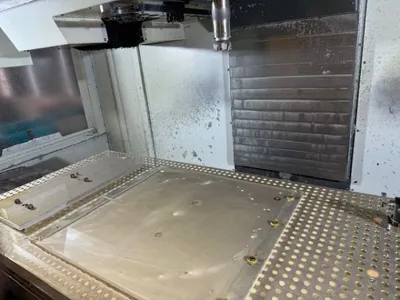

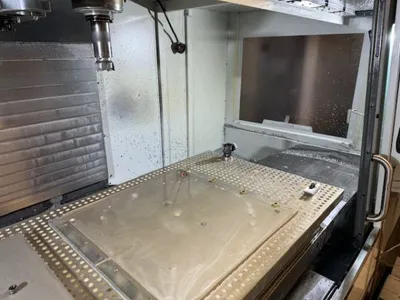

Table
Table Size: 64” x 28”
Number of T-Slots: 5
Maximum Table Load: 4,000 lbs.
Spindle
Spindle Taper: CAT 50 / CT 50
Maximum Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Maximum Torque: 340 ft-lbs. at 700 RPM
Spindle Drive: Two-Speed Gearbox
Spindle Cooling: Liquid-Cooled

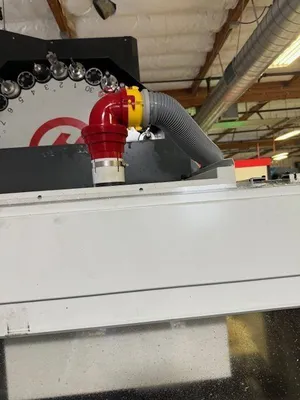

Tool Changer
Type: Side-Mount Automatic Tool Changer
Tool Capacity: 30+1
Maximum Tool Diameter: 4”
Maximum Tool Diameter with Adjacent Pockets Empty: 10”
Maximum Tool Length: 16”
Maximum Tool Weight: 30 lbs.
Feed Rates
Maximum Cutting Feed Rate: 500 IPM
X-Axis Rapid Traverse: 600 IPM
Y-Axis Rapid Traverse: 600 IPM
Z-Axis Rapid Traverse: 600 IPM
Utilities and General
Coolant Tank Capacity: 95 gallons
Electrical Requirement: 220 VAC, three-phase, 70 amps
High-Voltage Configuration: 440 VAC, three-phase, 35 amps when factory equipped
Air Requirement: 4 SCFM at 100 PSI
Minimum Air Pressure: 80 PSI
Approximate Shipping Weight: 25,500 lbs.
Approximate Shipping Dimensions: 195” L x 102” W x 131.5” H
