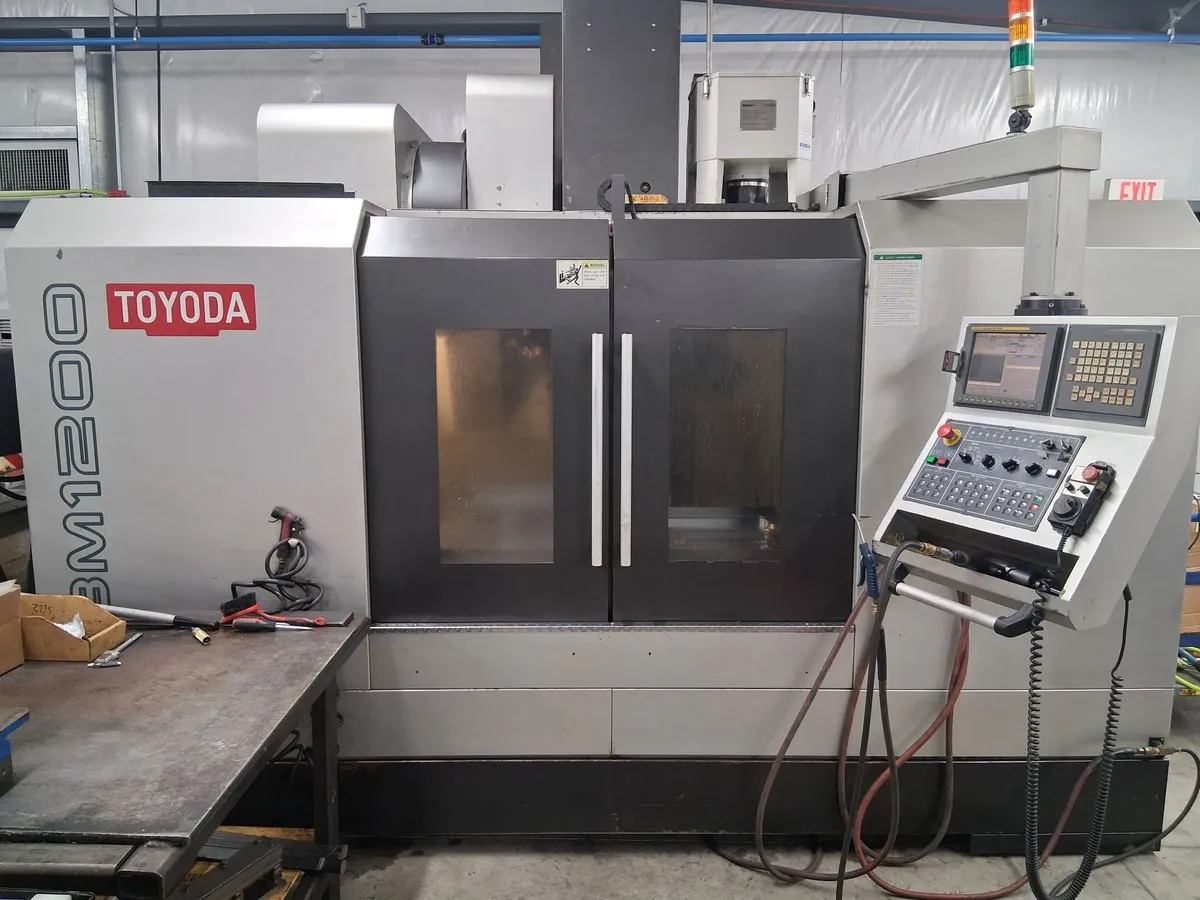

TOYODA BM1200 CNC Vertical Machining Center (2007/8)
ConditionUsed
1 available
TOYODA BM1200, 2007/2008 CNC Vertical Machining Center. Features Fanuc 18iMB control, 50-taper geared spindle, 25 HP motor, and rapid feedrates up to 944 IPM. Supports heavy cutting with a 16,093 lb frame. Ideal for mold work and large plate machining.
Travels
• X‑axis: 47.24 in
• Y‑axis: 23.62 in
• Z‑axis: 23.62 in
• Spindle‑to‑table: 4.92 – 28.54 in
Table
• Size: 51.18 × 23.62 in
• Max table load: 2,645 lb
Spindle
• Speed: 6,000 RPM
• Taper: CAT/BT‑50
• Motor: 25 HP
• Gear ranges: 2‑speed gearbox (high torque)
Feedrates
• Rapid (X/Y/Z): 944 / 944 / 787 IPM
• Cutting feed: 900 IPM
Tool Changer
• Capacity: 30 tools
• Machine weight: 16,093 lb

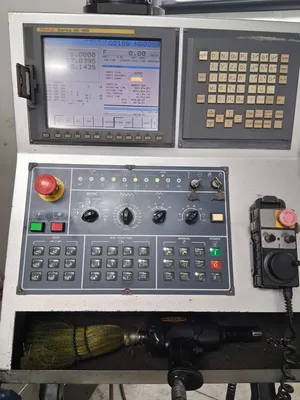

Fanuc Series 18iMB Control
Box‑way construction
50‑taper geared spindle
High‑rigidity frame for heavy cutting
The BM1200 is the mid‑large model, optimized for mold work, heavy hogging, and large plate machining.
TOYODA BM1200, 2007/2008 CNC Vertical Machining Center. Features Fanuc 18iMB control, 50-taper geared spindle, 25 HP motor, and rapid feedrates up to 944 IPM. Supports heavy cutting with a 16,093 lb frame. Ideal for mold work and large plate machining.
Travels
• X‑axis: 47.24 in
• Y‑axis: 23.62 in
• Z‑axis: 23.62 in
• Spindle‑to‑table: 4.92 – 28.54 in
Table
• Size: 51.18 × 23.62 in
• Max table load: 2,645 lb
Spindle
• Speed: 6,000 RPM
• Taper: CAT/BT‑50
• Motor: 25 HP
• Gear ranges: 2‑speed gearbox (high torque)
Feedrates
• Rapid (X/Y/Z): 944 / 944 / 787 IPM
• Cutting feed: 900 IPM
Tool Changer
• Capacity: 30 tools
• Machine weight: 16,093 lb
Fanuc Series 18iMB Control
Box‑way construction
50‑taper geared spindle
High‑rigidity frame for heavy cutting
The BM1200 is the mid‑large model, optimized for mold work, heavy hogging, and large plate machining.
