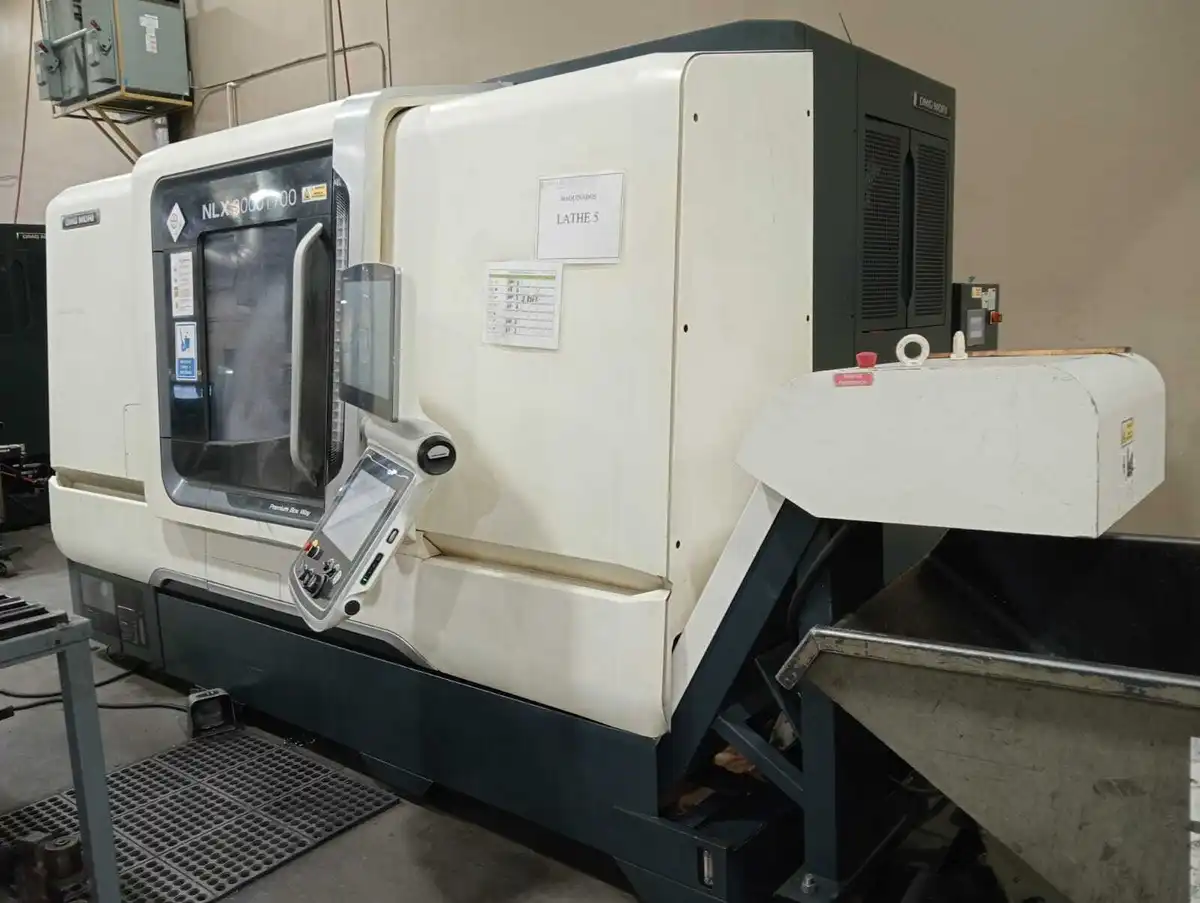

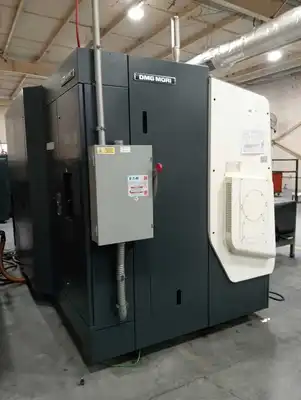

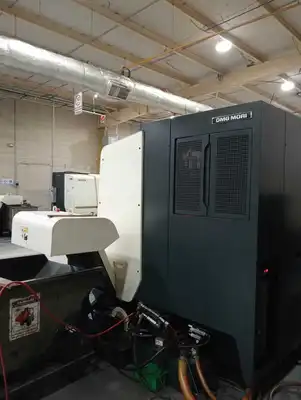

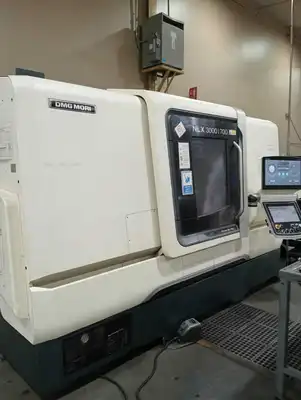

DMG MORI NLX3000/700 2-Axis CNC Turning Center (2019)

Max turning length: 713 mm (28.1 in)
• Max turning diameter: Ø 430 mm (16.9 in)
• Bar capacity: Ø 90 mm (standard) / Ø 102 mm (optional)
• Distance between centers: 700 mm
🔧 Axis Travels
• X‑axis: 280 mm
• Z‑axis: 820 mm
• Y‑axis (optional): ±60 mm (120 mm total)
🌀 Spindle
• Max spindle speed: 3,000 rpm
• Chuck size: 12" (typical for NLX3000 class)
• High‑rigidity spindle design for heavy‑duty cutting

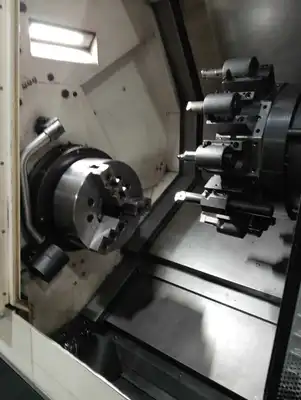

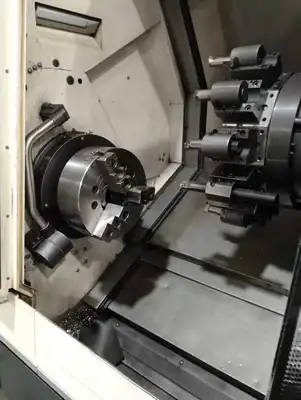

🔩 Turret / Milling Capability
• BMT (Built‑in Motor Turret)
• Rotary tool speed: 10,000 rpm
• Rotary tool torque:
• 40 N·m (short‑duration)
• Up to 100 N·m (3000‑series high‑torque spec)
• Tool stations: 10 or 12 depending on configuration
