Used 2006 MAZAK INTEGREX 100-IVS | CNC Lathes
ConditionUsed
1 available

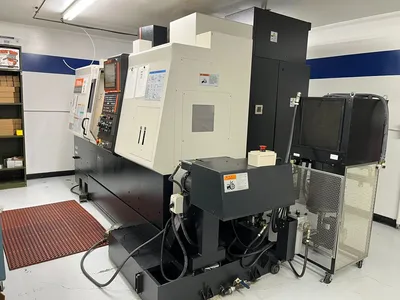

MAZAK INTEGREX 100-IVS CNC Lathe, 2006, excellent condition with 12,000 RPM milling spindle, Mazatrol Matrix Control, and 40 tool magazine. Includes chip conveyor, coolant chiller, and all manuals. Tooling available at extra cost.

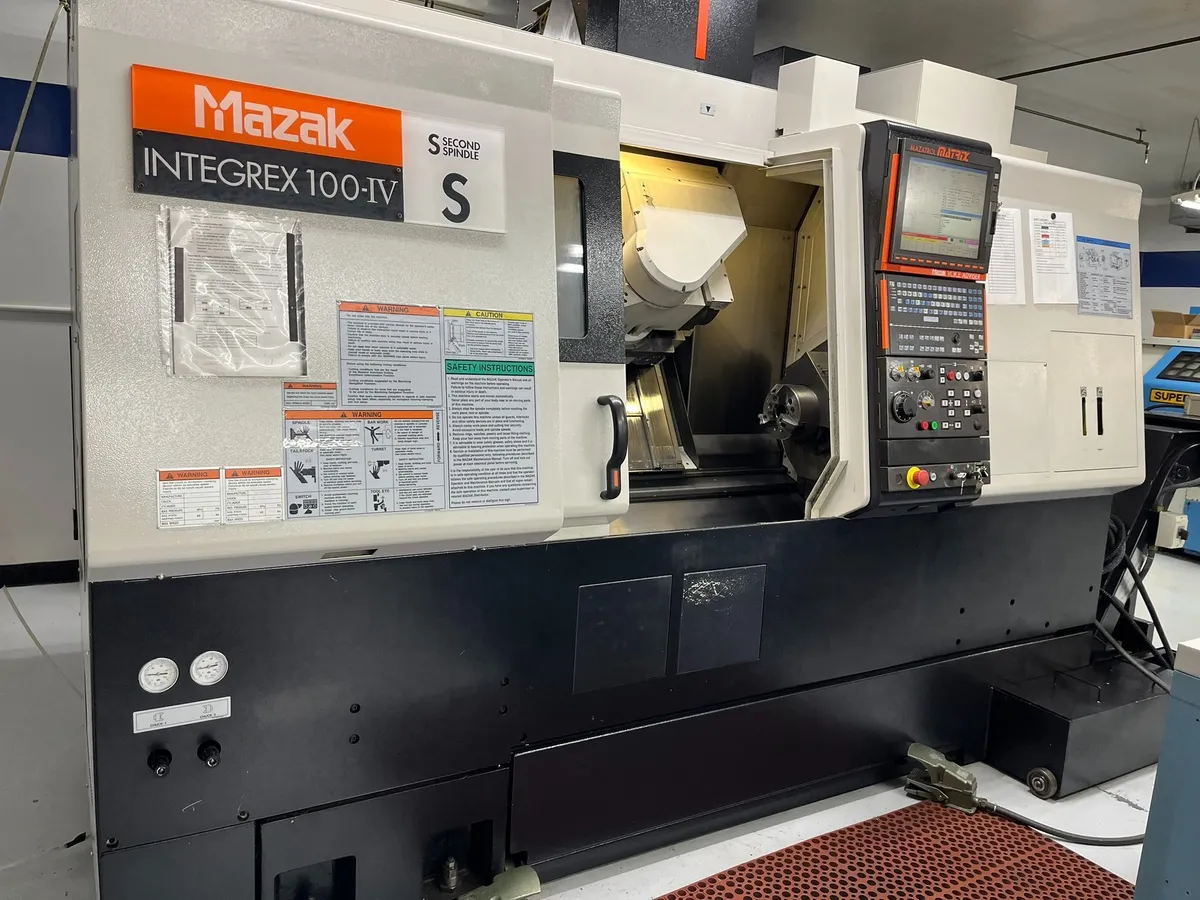

MAZAK INTEGREX 100-IVS
Year: 2005
Description:

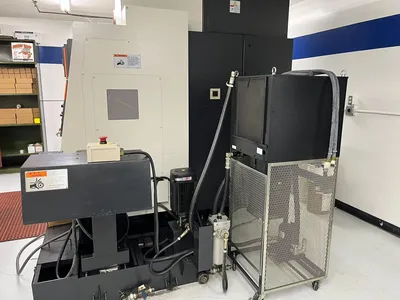

In great operating condition. Includes chip conveyor, coolant chiller, all manuals. Tooling is available at an extra cost. This machine requires special KM63 - XMZ tool holders. Used for manufacturing aluminum pistons.
Specifications:

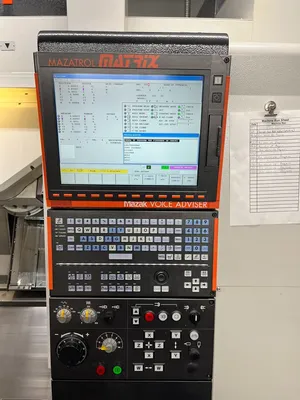

Mazatrol Matrix Control
12,000 RPM, 7.5 hp, 36.2 ft-lbs Milling Spindle

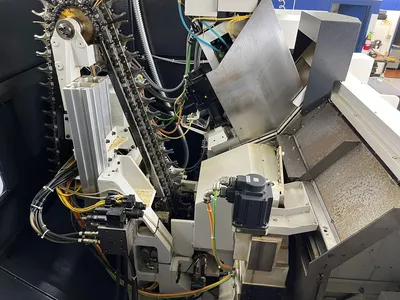

40 Tool Magazine
Y Axis +/- 2.75"
X Axis 16.14
Z Axis 31.69
W Axis 31.3
B Axis 225°
Machine Size 119" long x 85" wide x 96" tall
Machine Weight 16,300 lbs
Power Required is 32.9 KVA (Machine is wired for 240v 3 phase)
Machine has 400v transformer installed
Air Required is 72 psi / 25 CFM

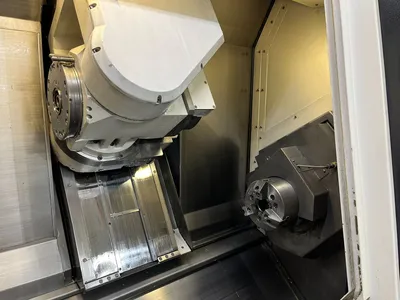

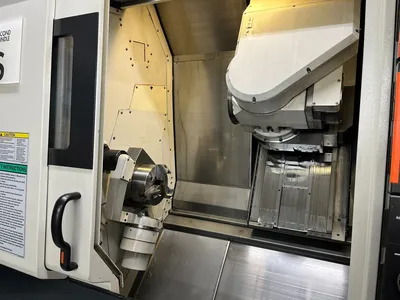

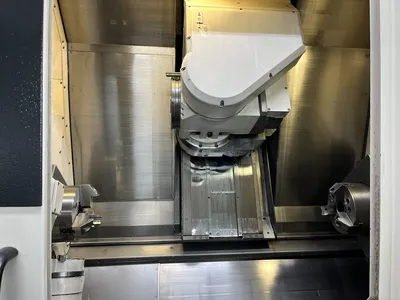

Primary & Secondary Spindles both have Kitigawa B206 chucks
Distance between chuck faces is 31.18"
Primary & Secondary Spindles both have C Axis capability
The control resolution is .00001" for linear axis and .0001° for angular axis
In great operating condition. Includes chip conveyor, coolant chiller, all manuals. Tooling is available at an extra cost. This machine requires special KM63 - XMZ tool holders. Used for manufacturing aluminum pistons.
