Equipment
CNC Drilling & Tapping Centers
CNC Drilling and Tapping Centers
2 Brother Speedio U500XD1 with Automation (2023)
Sold

2 Brother Speedio U500XD1 with Automation (2023)

Sell Your BROTHER Speedio U500XD1
CNC Drilling and Tapping Centers
Manufacturer:
BROTHER
Model:
Speedio U500XD1
Year:
2023
Stock #:
9716

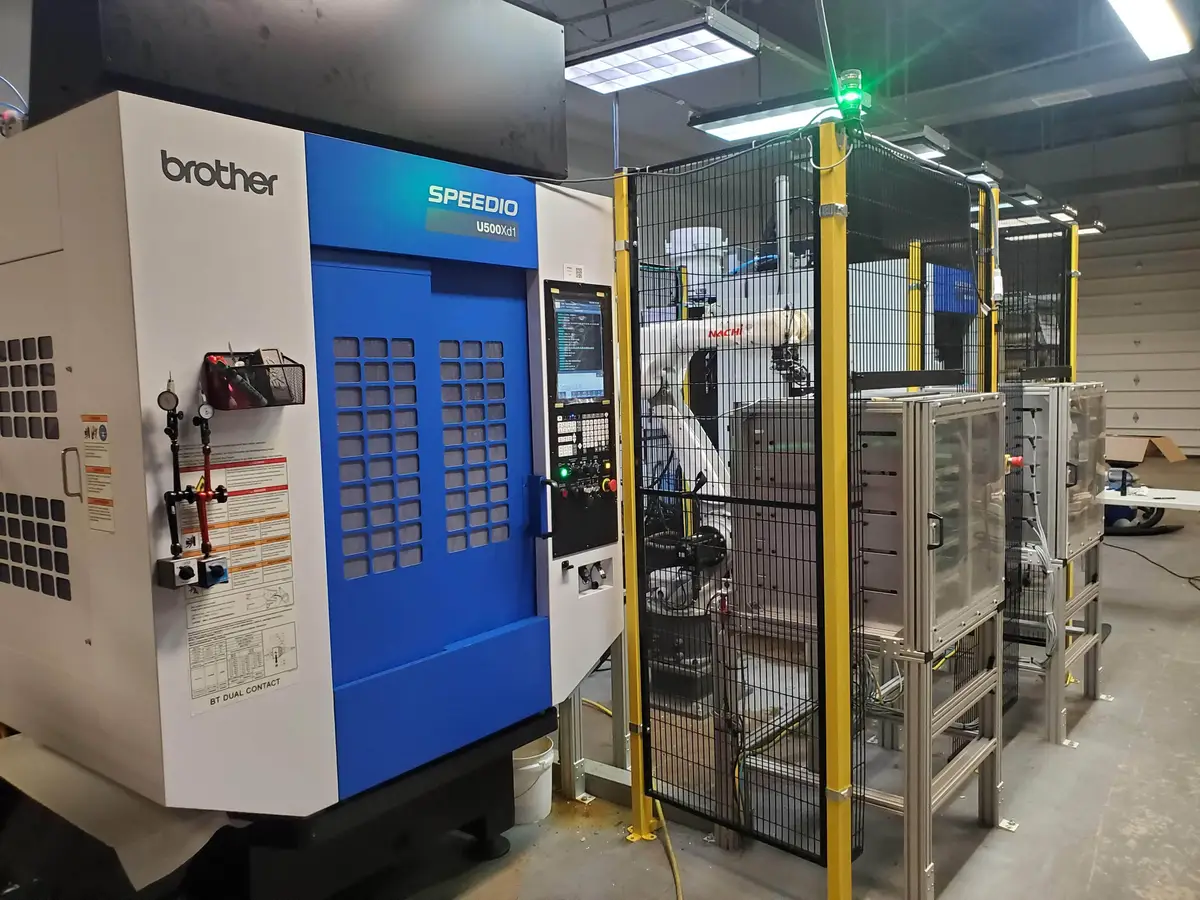

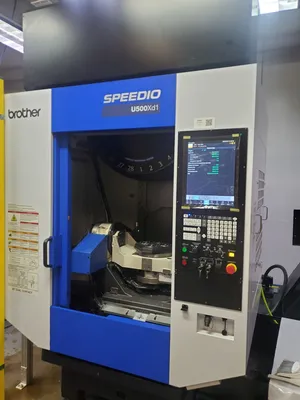

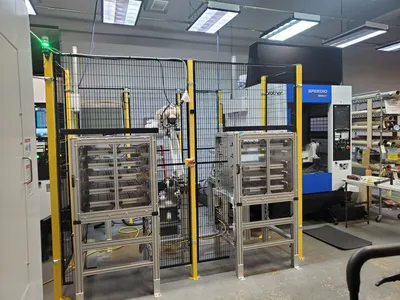

(2) 2023 Brother Speedio U500XD1 CNC Drilling and Tapping Centers, used condition. Features 16,000 RPM spindle, 28-tool ATC, tilting rotary table, and automation. Equipped with CleanSweep G2, Blum probes, and more. Two units available, videos on request.

Brother CNC-D00 Control with Built-In PLC
16,000 RPM BBT CTSI (Coolant Through Spindle Interface - No Pump)
7.4/5.1 HP Main Spindle Motor - IPM Motor Type
BIG-PLUS BT-30 Taper, 28 Tool Drum-Type ATC
Travel: 19.7¨ x 15.7¨ x 11.8¨
Tilting Rotary Table with 10.2 Diameter Work Area Size
Rapid Traverse: X,Y - 1,969 IPM / Z - 2,205 IPM
Air Assisted Tool Wash and Back Washing System
Automatic Grease Lubrication System
Chip Shower System
Complete Covers and Safety Door Interlock System
500MB Memory

CleanSweep G2 Right Hand Discharge 500L
NOP WBF 1000 PSI Brother CTS Pump and Filter Kit
with Bag Filter
Amano MJ-10 Mist Collector with Top Mount
Installation Kit
Blum TC-52 Spindle Probe Kit for Brother for New
Customer
Blum Z-Nano for U500
Pneumatic Panel Side Mounted
Pneumatic Circuit w/ One Dual Acting Valve, 4 Station
Block
Auto Side Door(Automation loading)
Schunk items (jaws, adapter plate,Vero receiver)
bugetary
Rotary Joint 6 Port
Machines are 4+1 (NOT simultaneous 5 axis).

2 IDENTICAL MACHINES AVAILABLE WITH SAME SET UP
VIDEOS AVAILABLE UPON REQUEST
PAID $240K EACH, NEW IN 2023

QUOTE PRICE IS FOR EACH MACHINE SYSTEM OR MAKE OFFER FOR THE PACKAGE OF 2
