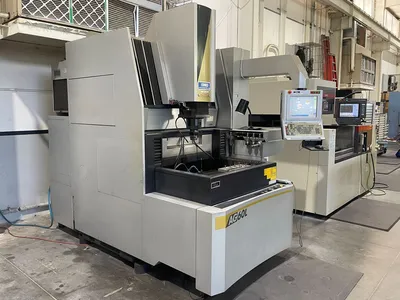

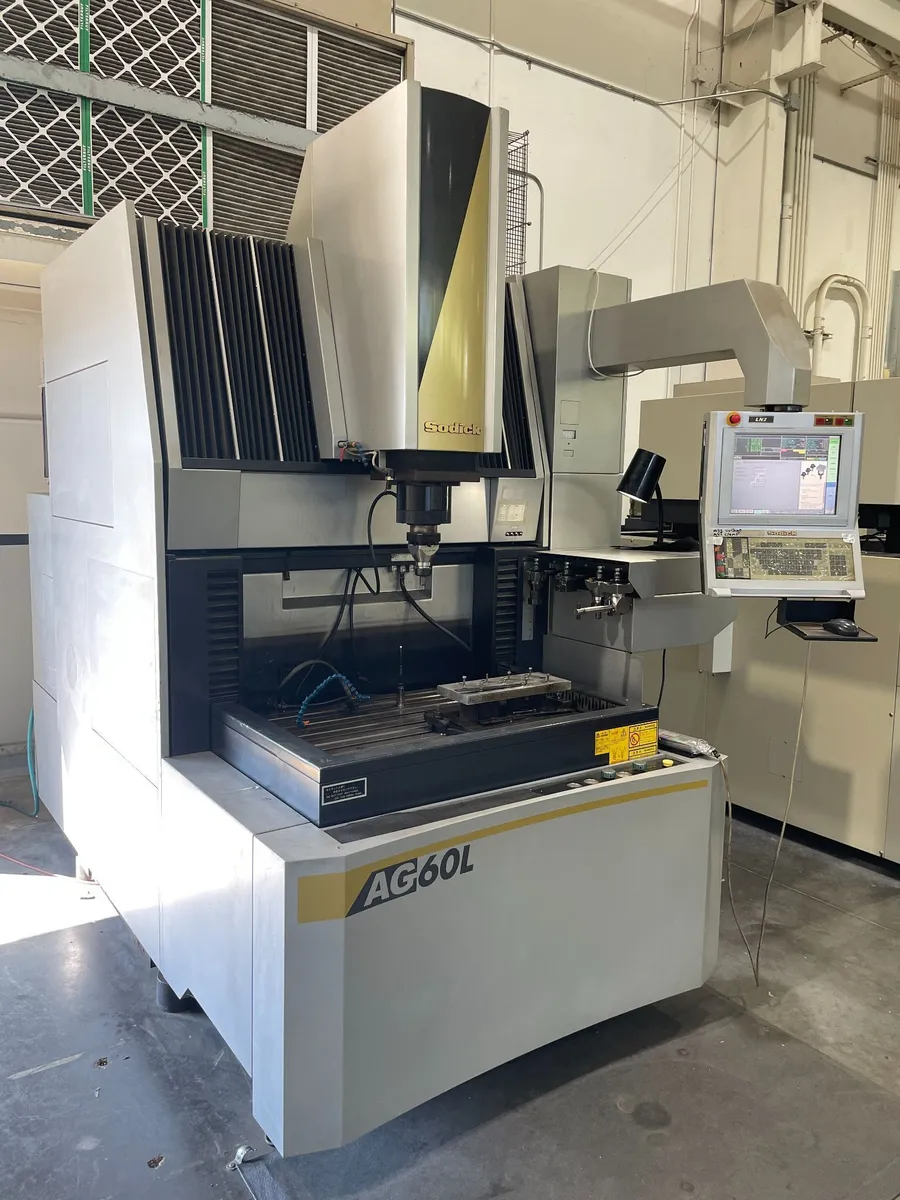

SODICK AG60L Sinker EDM
ConditionUsed
1 available
SODICK AG60L EDM Sinker, used. Table: 29.53"x21.65"; Tank: 41.34"x27.95"x18.11". Load: 3,307 lbs. Travels: 23.62"x16.54"x14.57". Features: LN2 Control, 4 Axis burn, 15" Touch Screen, 6 ATC, 3R Macro chuck. Machine weight: 10,912 lbs.
Work Table Size: 29.53 x 21.65 inches (750 x 550 mm).
Work Tank Dimensions: 41.34 x 27.95 x 18.11 inches (104.5 x 70.0 x 465 mm).
Max Table Load Capacity: 3,307 lbs (1,400 kg).
Travel Axes: X, Y, Z with travel of 23.62 x 16.54 x 14.57 inches (600 x 420 x 370 mm).
Machine Weight: 10,912 lbs (4,950 kg).
LN2 Control
4 Axis simultaneous burn capability

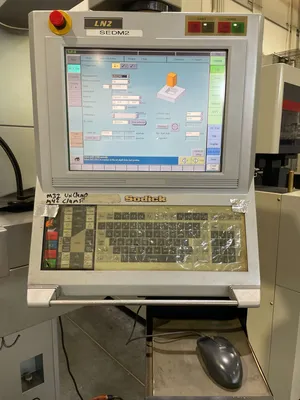

15” Touch Screen

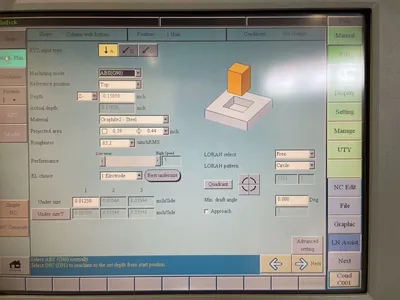

Easy to learn Conversational LN Assist control

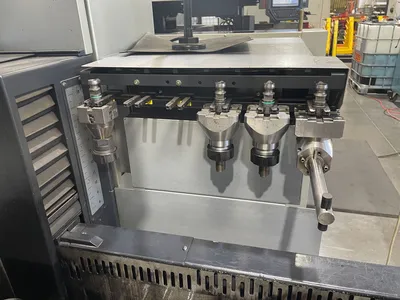

6 Position ATC
3R Macro chuck

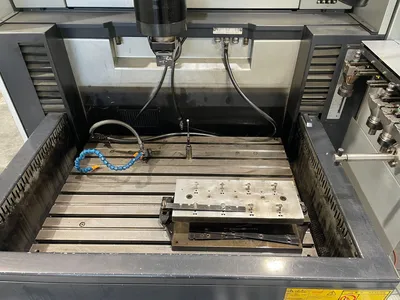

Fixed work table with full access drop tank
