| X | 120" | 3,048 mm |
| Y | 25.2" | 640.08 mm |
| Z | 25.2" | 640.08 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT50 | CAT50 |

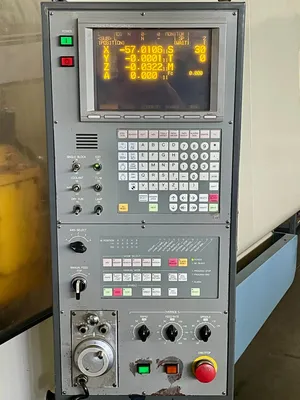

Mitsubishi 520 ME Control
30hp 2 speed geared headstock
120"x25.2"x25.2" Travels
6,000 rpm
Cat 50 spindle

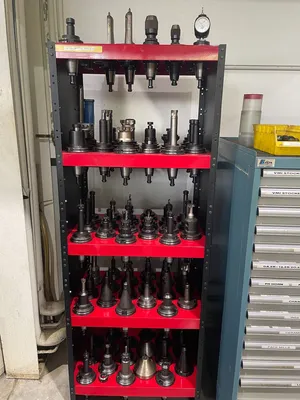

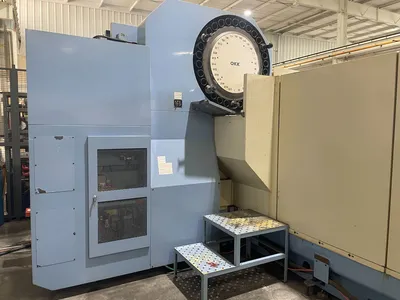

30 Tool ATC

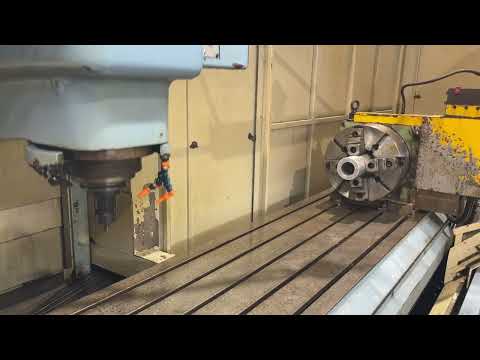

MMK MD-400R 4th axis 16.25” dia. Chuck /w 6.5" Thru bore
120" X axis travel (630 IPM Rapid Rate)
25.2" Y Axis travel (945 IPM Rapid Rate)
25.2” Z axis travel (787 IPM Rapid Rate)
2 Full length screw type chip conveyors
Removable side doors allow unlimited part length in X axis
Only 633 Hours
This equipment has been sold. Similar equipment available now is shown below.
