| Swing | 29.06" | 738.12 mm |
| Machining Length | 37.72" | 958.09 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15.75" | 400.05 mm |
| Bar Capacity | 4.62" | 117.35 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,900 RPM | 1,900 RPM |
| Turning Dia | 22.4" | 568.96 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

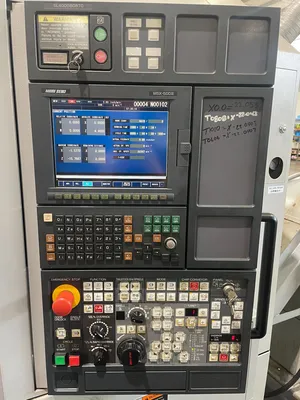

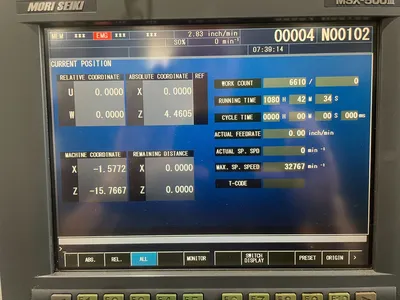

Mori MSX-500 III (Fanuc CNC) Control
15.75” dia. SHUNK 3 jaw chuck /w quick change jaws (THW 400-120)
4.62” thru spindle bar capacity /w hydraulic power chuck

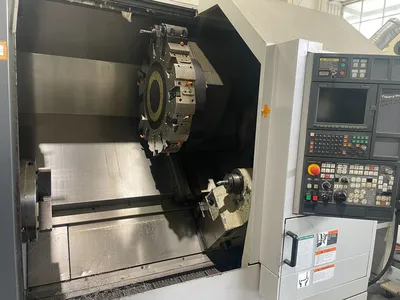

12 pos turret
29.06” Max Swing Dia.
24.4” Max turn Dia.
37.72” Max turn Length
13.58” X axis travel
39.17” Z axis travel
50/40hp High Tq 2 speed geared headstock
1,900 max rpm spindle

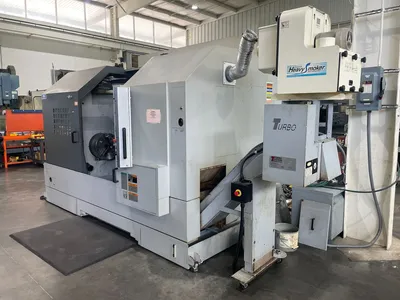

Turbo chip conveyor
Mist collector
Tool Pre-setter
Only 1080 hours
This equipment has been sold. Similar equipment available now is shown below.
