| Swing | 35.4" | 899.16 mm |
| Machining Length | 80.4" | 2,042.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 10.8" | 274.32 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 25.6" | 650.24 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Fanuc 31i-A CNC Control

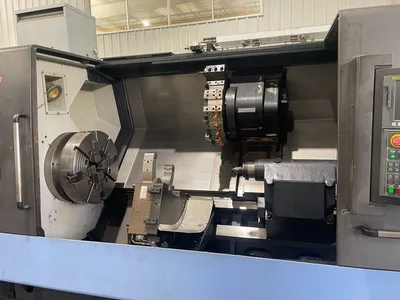

24” 4 jaw manual front chuck / 24” 3 jaw manual rear chuck
10.8” thru spindle bar capacity
Factory special ordered with Puma 480D larger diameter headstock
SMW Hydraulic steady rest 12.2” max dia.
60hp 2spd geared headstock
1,000 max rpm spindle

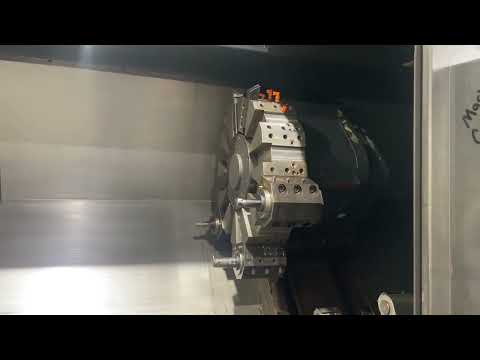

12 pos turret
35.4” Max Swing Dia.
25.6” Max turn Dia.
80.4” Max turn Length
14.3” X axis travel
84.8” Z axis travel
1454 hours
