| X | 24.21" | 614.93 mm |
| Y | 10.24" | 260.1 mm |
| Z | 42.4" | 1,077 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 5,000 RPM | 5,000 RPM |
| # Axis | 5 | 5 |
Max. Swing Over Bed: 25.9"
Max. Turning Diameter: 25.9"
Max. Turning Length: 39.8"
Chuck Size: 8"
Bar Capacity: 2.6"
Spindle Nose: A2-6
Spindle Bore Diameter: 3"
Spindle Speed: 5,000 RPM
Spindle Power: 30 HP

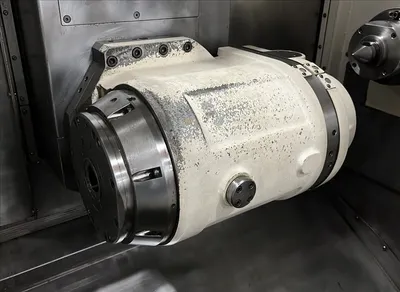

B-Axis Travel: 240°
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Power: 30 HP
ATC for Milling Spindle: 36-ATC
Tool Diameter: 3.5" - 4.92"
Tool Length: 15.8"
X-Axis Travel: 24.2"
Z-Axis Travel: 42.4"
Y-Axis Travel: 10.2"
W-Axis Travel: 40.4"
Rapid Traverse Rates (X): 1,969 IPM
Rapid Traverse Rates (Z): 1,969 IPM
Rapid Traverse Rates (Y): 1,575 IPM
Rapid Traverse Rates (W): 315 IPM
Mazatrol SmoothX 5-Axis Package
Smooth Synchronous Tap (Mill Axis)
Tool Eye (Automatic)

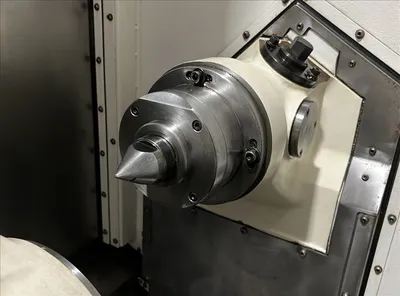

NC Tailstock
Mazak Monitoring System B (RMP60)
3-Tier Signal Tower (Square)

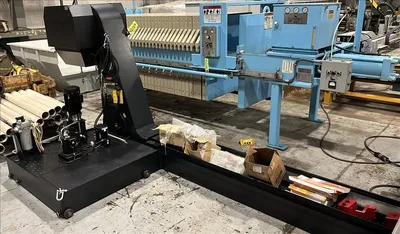

Chip Conveyor (Side-Out)
Capto C6 Tool Shank Style (10 Tool Holders)
This equipment has been sold. Similar equipment available now is shown below.
