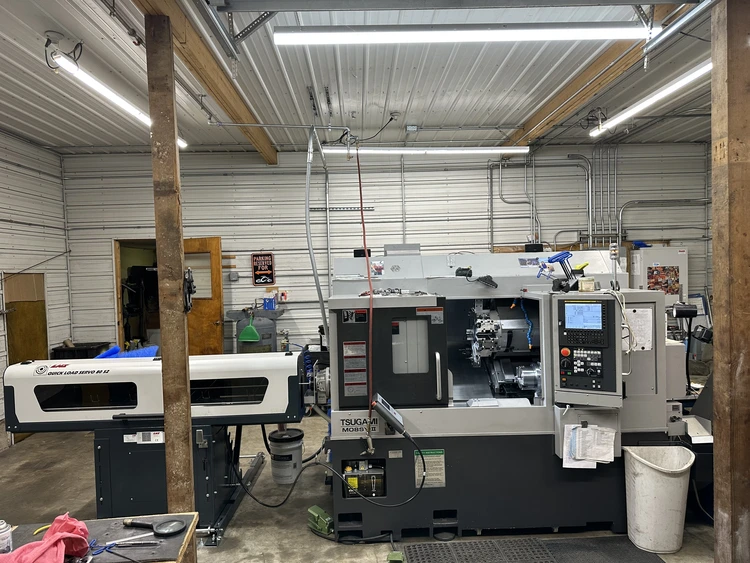

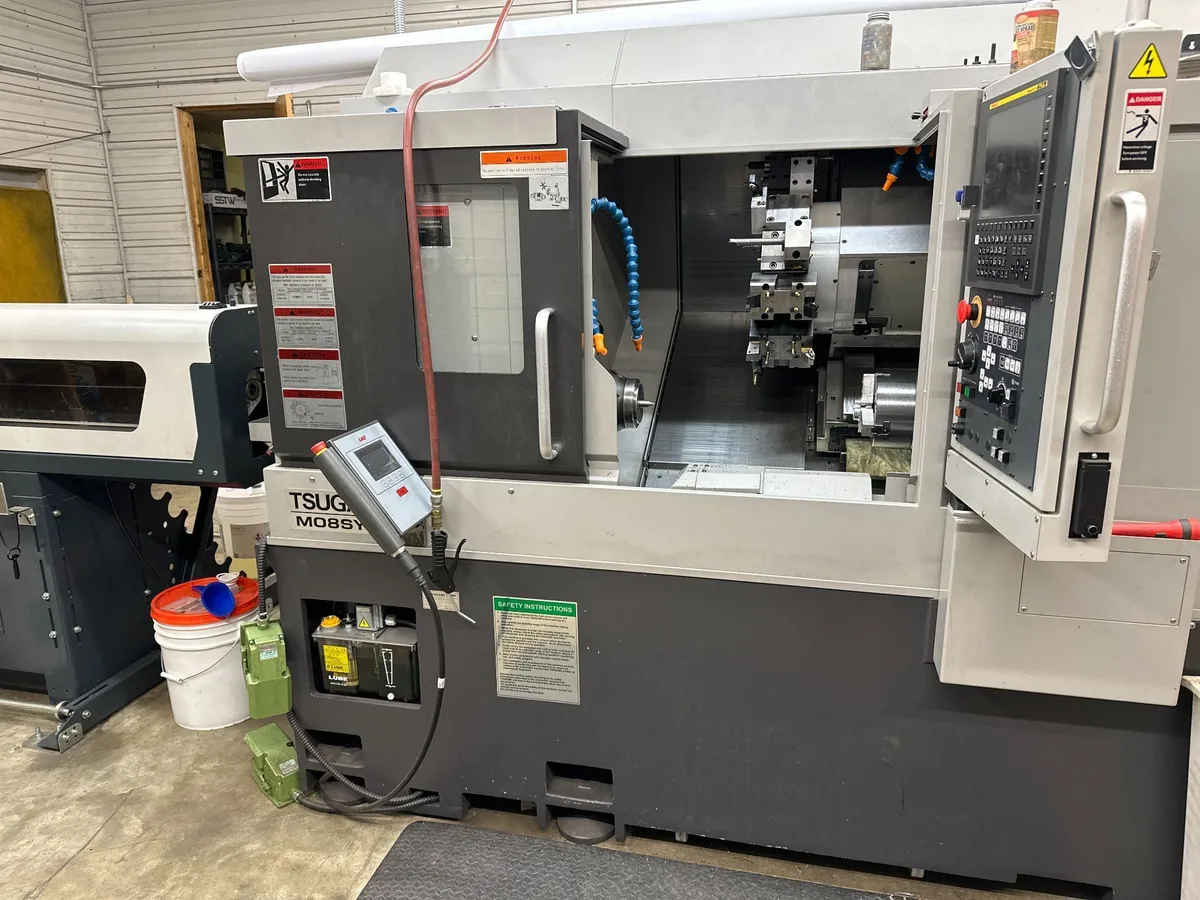

Tsugami M08SY-II Swiss Turning Center with Y-axis
5-Axis or More CNC Lathes
The Tsugami M08SY-II Turning Center with Y-axis allows you to perform highly complex machining, such as turning, drilling, boring, cross-drilling and CNC milling. The main and subspindle are equipped with integral built-in spindle motors which minimize vibration and provide superior accel/decel for heavy duty cutting and fine finishing. The Y-axis enables off center CNC milling of complex parts, and incorporating the subspindle eliminates the need for secondary operations.
Chuck Size 8 inch
Number of Stations 12
Main Spindle Speed/Motor 10 – 14.8 hp (7.5 / 11 kW)
Back Spindle Speed/Motor 7.45 – 10 hp (5.5 / 7.5 kW)
Max. Live Tool Speed 5,000 rpm
Control Fanuc 0i-TF
Weight 13,007 lbs, 5,900 kg
Width x Depth x Height 97.24″ x 72.83″ x 75.98″(2,470 x 1,850 x 1,930mm)
Fanuc oi-TF control
LNS Servo Quick Load 80 S2 Bar Feed

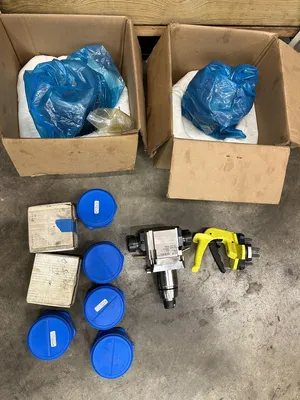

Royal GQ65 collet and GQ65 collet Chucks for main and sub spindles

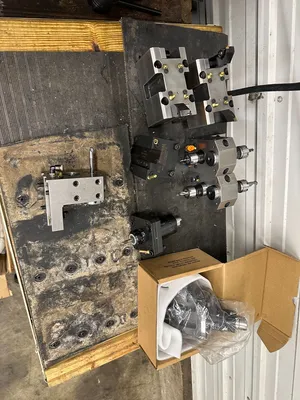

Bidirectional er32 axial live tool holder
High Pressure Coolant
3 spindle liners
tool presetter, all turret position are capable of live tooling, parts catcher, parts conveyor, chip conveyor, "C" and "B" axis, 4500 rpm integrated spindle motors on the main and sub spindles, multiple work coordinates avaible, two path
