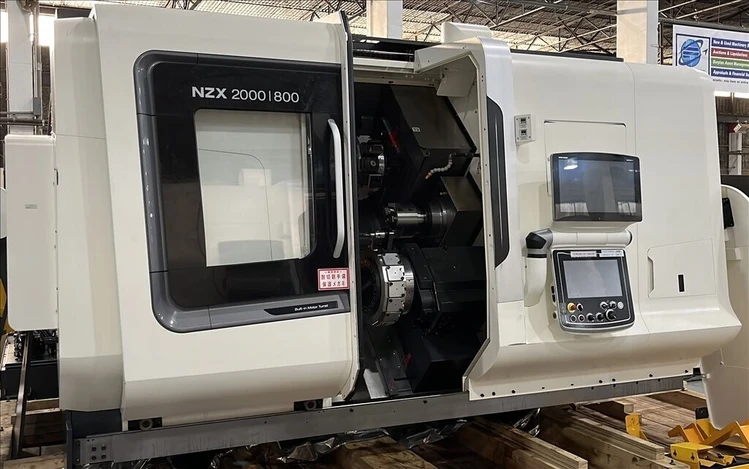

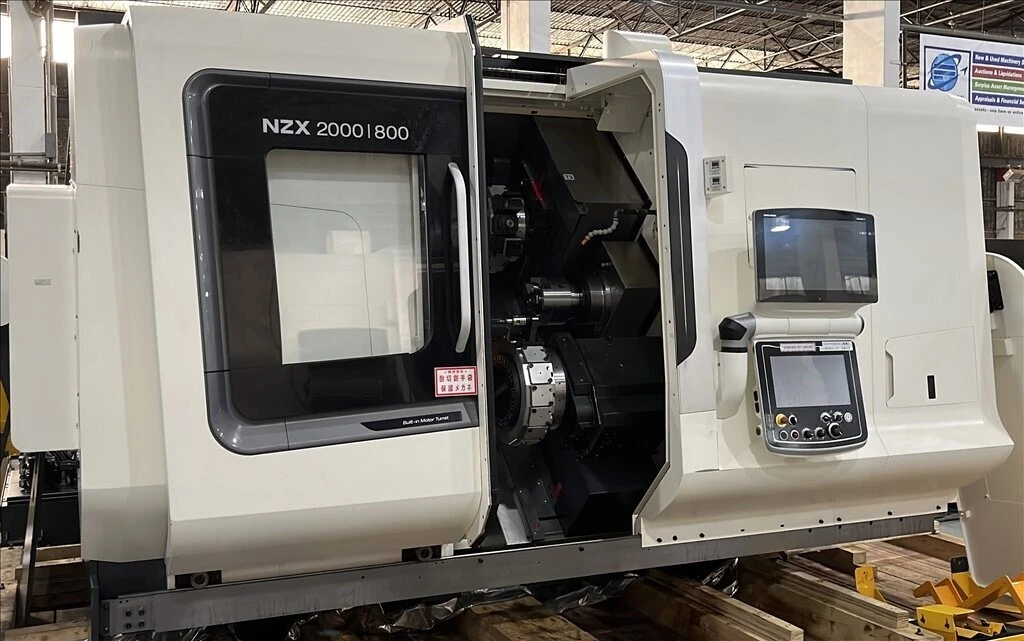

DMG Mori NZX2000/800STY3 Cnc Multi-Axis Turning Center
5-Axis or More CNC Lathes
Explore precision machining with a 2019 DMG MORI NZX2000/800STY3 CNC lathe. 5+ axes, equipped with Fanuc Control, chip conveyor, tool presetters, additional chucks, and comprehensive specs for optimum performance.
Swing Over Bed: 31.5"
Swing Over Cross Slide: 31.5"
Max. Distance Between Spindle Large Noses: 44.4"
Max. Turning Diameter: 12.5"
Standard Turning Diameter: 7.9"
Max. Workpiece Delivery Diameter: 11.8"
Max. Turning Length: 31.8"
Bar Capacity: 2.5"
X1, X2, X3 Travel: 8.2"
Y1, Y2, Y3 Travel: 4.3"
Z1, Z3 Travel: 11.8"
Z2 Travel: 31.8"
B-Axis Travel: 34.2"
Chuck Size (Spindle 1 & 2): 8"
Through Spindle Hole Diameter: 2.9"
Spindle Bearing Inner Diameter: 4.7"
Min. Spindle Indexing Increment: 0.001°
Max Spindle Speed: 5,000 RPM
Spindle Motor (1 & 2): 30 hp
Max Rotary Tool Spindle Speed: 6,000 RPM
Rapid Traverse (X1, X2, X3): 1181.1 IPM
Rapid Traverse (Y1, Y2): 787.4 IPM
Rapid Traverse (Z1, Z2, Z3): 1968.5 IPM
Power On Time: 20,137 Hours
Cutting Time: 11,120 Hours
Fanuc 31iB CELOS-ERGOline Touch CNC Control
Chip Conveyor
(2) Tool Presetters
(2) Additional Chucks
