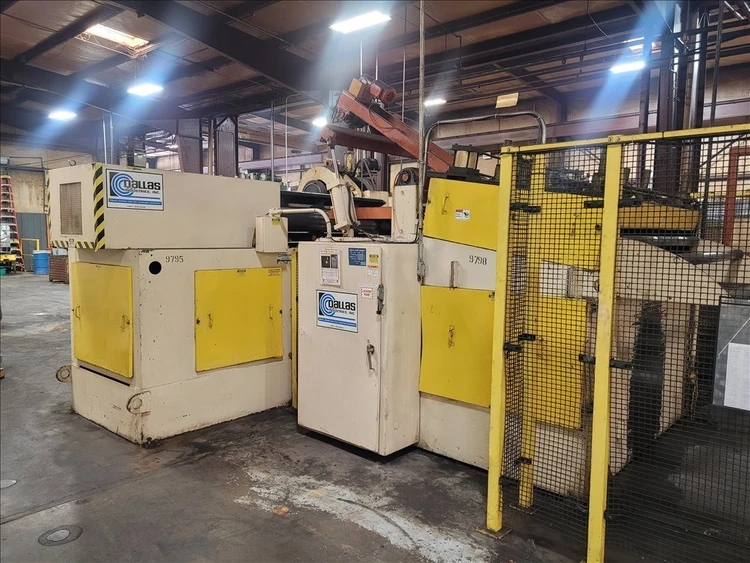

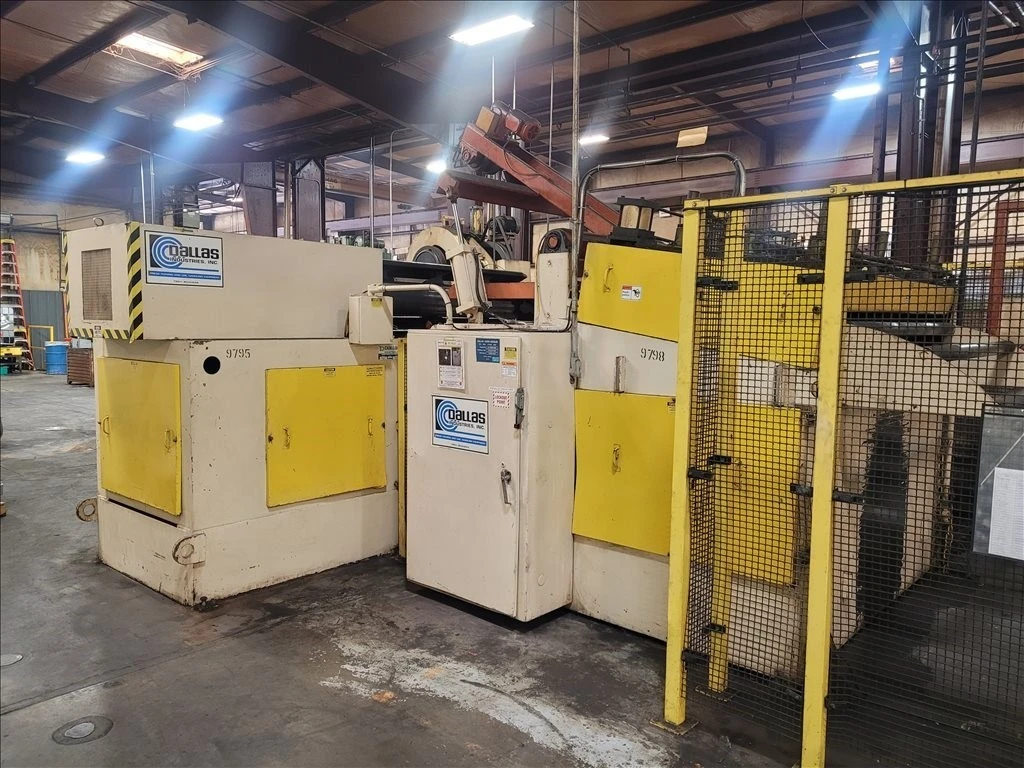

Dallas 20,000 Lb. X 72" X .060" Servo Coil Feed Line
ConditionUsed
1 available
For sale: 1998 DALLAS DJR Coil Feed Line, used condition. Capacity: 20,000 Lb, 72" width. Includes Straightener, Coil Reel, Servo Feed. Updated Control in 2015, 480V power. Essential for heavy-duty coil handling.
20,000 lbs DALLAS DJR-20,000#x72 Coil Reel, s/n 20212
72" Wide, 20"-24" I.D. / 72" Max O.D.
Powered Jog Forward and Reverse
6 Keepers
20,000 lbs DALLAS LC-20,000#x72 Coil Lift, s/n 20213
42" Min O.D. / 72" Max O.D.
18" Lift Height
DALLAS DPS-4 1/4-2-72 Powered Straightener, s/n 20215
72" x .060" Mild Steel, 48" x .125" Mild Steel Capacity
7 Straightening Rolls, 4-1/4" Diameter Rolls
Entry and Exit Pinch Rolls
Coil Restrictor-Debender, Peeler-Threader
Dual Exit Threading Tables
Hand Held Pendant
Sona-Trol Loop Eye
DALLAS DRF-672 Servo Feed, s/n 20217
72" x .060" Mild Steel, 48" x .125" Mild Steel Capacity
6" Diameter Feed Rolls
Control Updated in 2015 DRF Control 900E
Hand Held Pendant
Adjustable Cabinet Base
480V/3ph/60Hz
Right to Left Direction
DALLAS 20,000 Lb x 72" Wide x .060" (48" x .125") Servo Coil Feed Line
Control Upgraded in 2015
Save 50% Off New Replacement Cost
