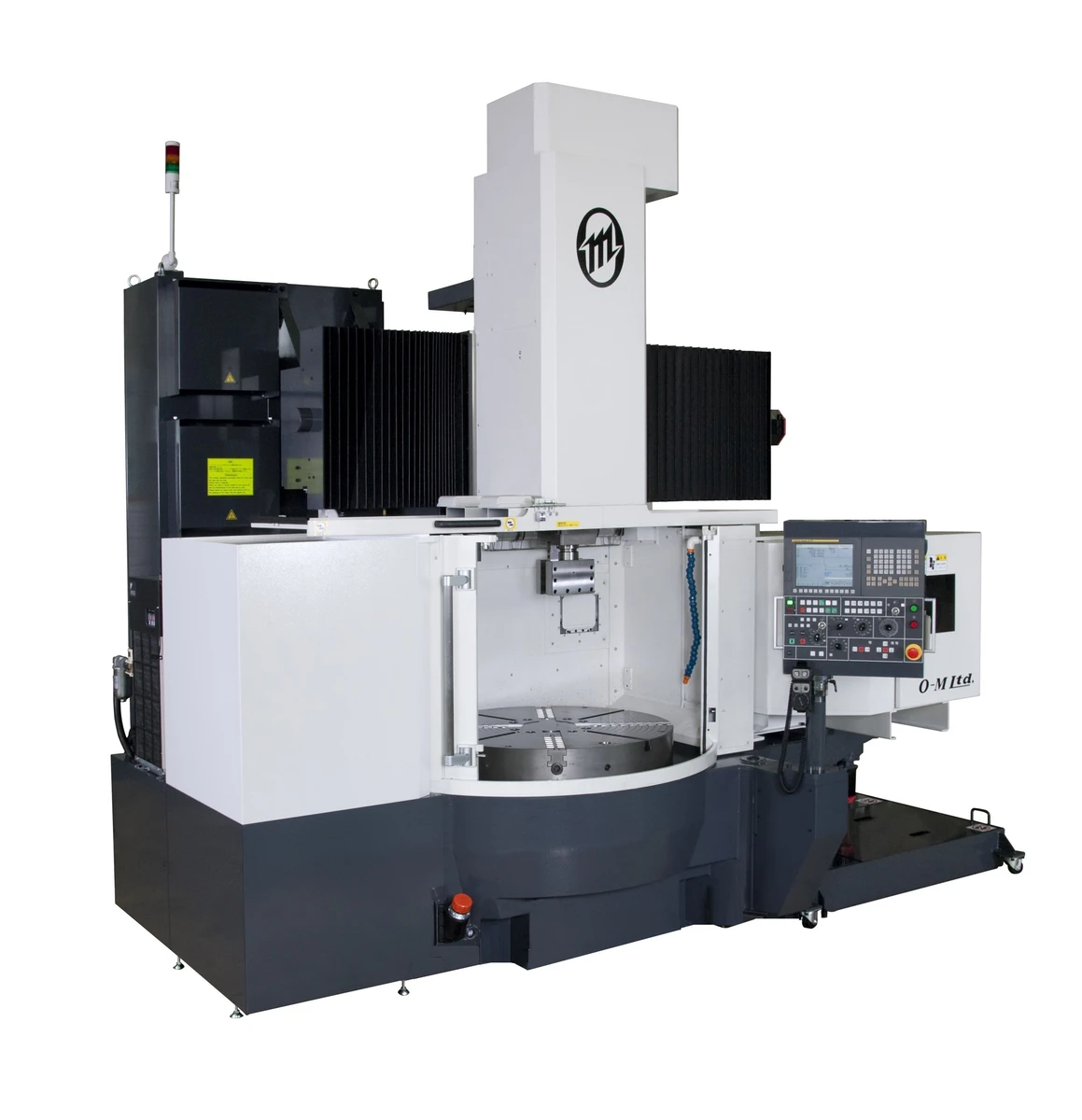

O-M RT-915 CNC Vertical Lathe- NEW
ConditionNew
1 available
New
For sale is a New O-M RT-915 CNC Vertical Lathe, manufactured in 2023. This powerful Japanese Manufactured machine has a table diameter of 36.02" and supports a max. workpiece mass of 3300lbs. The operational capacity includes a max. swing of 43.31" and a max. turning diameter of 39.37". The machine utilizes a FANUC 0i-TF PLUS CONTROL & 36.02" independent 4-jaw for efficient operations. The unit comes equipped with an automatic tool changer that can accommodate 18 tools, a chip conveyor, chip bucket and a rigid ram type tool post. Plus, it features a fully enclosed chip cover for safe operations and a tool presetter (included in the first few models). The machine is environment-conscious and supports a high PSI coolant application. Interested buyers, who appreciate compact design, easy access to table, and a small footprint machine, are welcome to contact us for further details.
Table diameter 915mm（36.02"）
Max. turning diameter 1,000mm（39.37"）
No. of table speeds 2 x infinitely variable
Table speed range: Standard 4.2 ~ 420 rpm
Max. swing 1,100mm（43.31"）
Max. turning height 700mm（27.56"）
Max. mass of workpiece 1,500kg（3,300lbs）
Max. torque for turning 4,380N・m（3,231lbf・ft）
Max. cutting force 20,000N（4,400lbf）
Ram size
Tool Shank Size 32 x 32mm（1.25"x1.25"）
Number of table speed Range 1
Table speed for turning 4.2min-1 ～ 420min-1
Rapid feed speed（X axis）20,000mm（787.4"）/min
Rapid feed speed（Z axis）15,000mm（590.55"）/min
Cutting Feed Rate 0.01mm（0.0004"）/rev ～ 500mm（19.69"）/rev
Main motor AC 37/30KW（50/40HP）
Magazine capacity 18 pcs
Max. machine height 3,440mm（135.43"）
Machine dimension（width×depth） 3,682mm（144.96"）× 3,730mm（146.85"）
Total power capacity 60kVA
Mass of machine 13,100kg（28,880lb
FANUC 0i-TF PLUS CONTROL
36.02" INDEPENDENT 4-JAW
AUTOMATIC TOOL CHANGER -18 TOOLS
FULLY ENCLOSED CHIP COVER
CHIP CONVEYOR
CHIP BUCKET
TOOL PRESETTER (INCLUDED ONLY FIRST FEW MODELS, THEN BECOMES OPTION)
X-AXIS LINER SCALE FEEDBACK
MFG IN JAPAN
KEY FEATURES OF THIS NEW O-M RT-915CNC VERTICAL LATHE
COMPACT DESIGN
EASY ACCESS TO TABLE
SMALL FOOTFRINT
RAM TYPE TOOL POST WITH RIGIDITY
ENVIRONMENT CONSCIOUS
FULLY ENCLOSED CHIP COVER
HIGH PSI COOLANT APPLICABLE
INTRODUCTORY MODEL WITH HUGE DISCOUNT / COMPETITIVELY PRICED WITH OFF BRAND MODELS
CONTACT US FOR MORE DETAILS
*** LARGER O-M MODELS ALSO AVAILABLE UPON REQUEST ***
